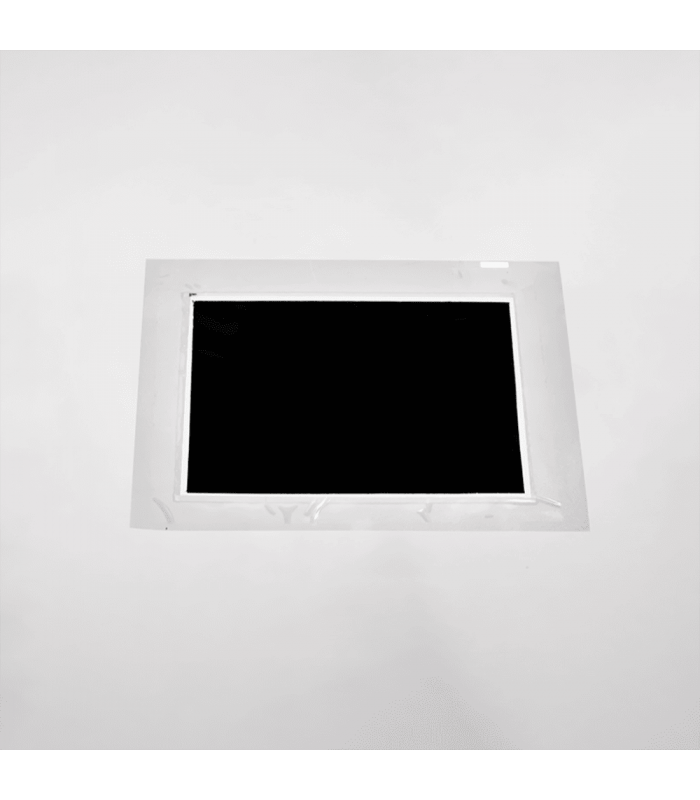

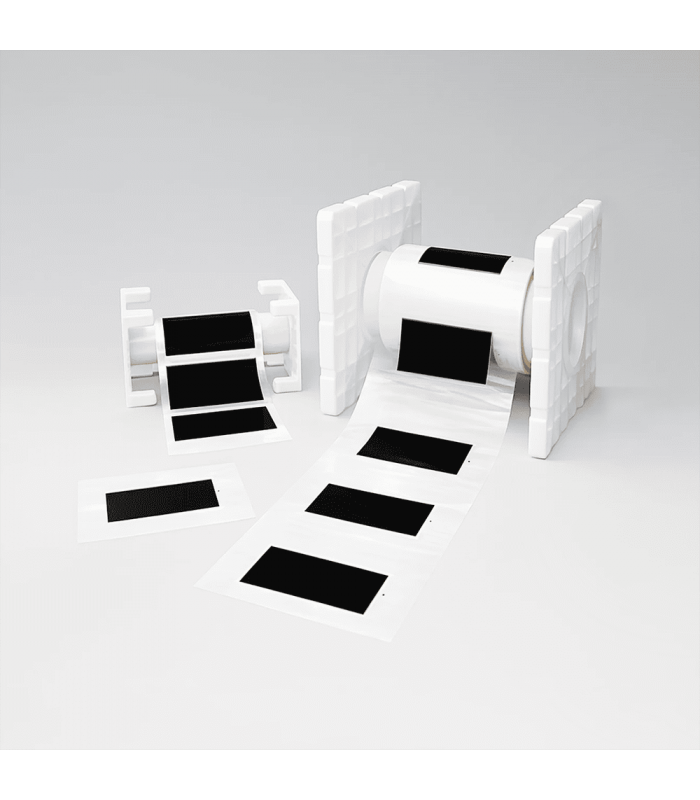

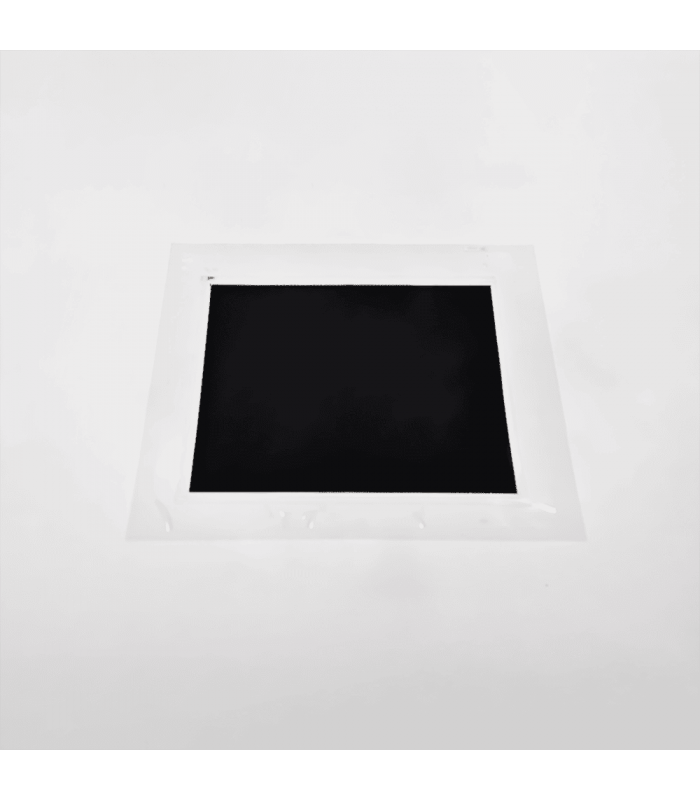

3-Layer MEA

  • Product Code: MEA-3-200-270
  • Availability: In Stock

  • $399.00

Product Description:

✔  12 µm membrane with outstanding chemical stability, mechanical durability and high performance even in dry conditions.

✔  Pt loading (An/Ca): 0.05/0.4 mg/cm²

✔  Standard Size: 200 mm × 270 mm (reaction area)

✔  For 5-layer MEA, 7-layer MEA, and customized sizes, contact hello@spectronik.com

Technical Specifications:

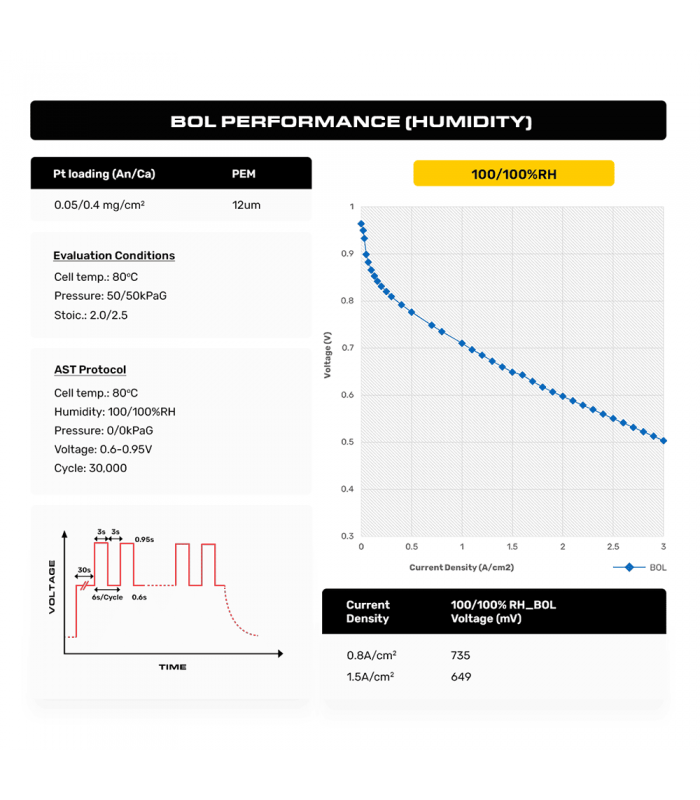

At Anode/Cathode RH 100%/100%


• Beginning-of-Life (BOL) Voltage at 0.8A/cm2 Current Density: 735mV
• Beginning-of-Life (BOL) Voltage at 1.5A/cm2 Current Density: 649mV

At Anode/Cathode RH 88%/42%


• Beginning-of-Life (BOL) Voltage at 0.8A/cm2 Current Density: 742mV
• End-of-Life (EOL) Voltage at 0.8A/cm2 Current Density: 696mV
• Beginning-of-Life (BOL) Voltage at 1.5A/cm2 Current Density: 670mV
• End-of-Life (EOL) Voltage at 1.5A/cm2 Current Density: 601mV

At Anode/Cathode RH 20%/20%


• Beginning-of-Life (BOL) Voltage at 0.8A/cm2 Current Density: 726mV
• Beginning-of-Life (BOL) Voltage at 1.5A/cm2 Current Density: 633mV

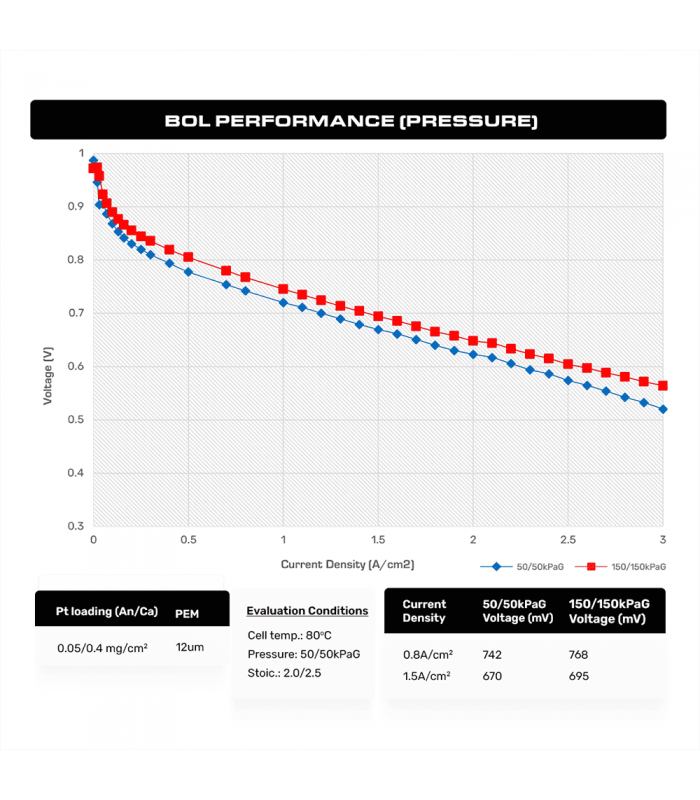

At Anode/Cathode 50/50 kPaG Pressure


• Beginning-of-Life (BOL) Voltage at 0.8A/cm2 Current Density: 742mV
• Beginning-of-Life (BOL) Voltage at 1.5A/cm2 Current Density: 670mV

At Anode/Cathode 150/150 kPaG Pressure


• Beginning-of-Life (BOL) Voltage at 0.8A/cm2 Current Density: 768mV
• Beginning-of-Life (BOL) Voltage at 1.5A/cm2 Current Density: 695mV

Note: For detailed Specifications, download the full datasheet below.

Download:
