Includes:

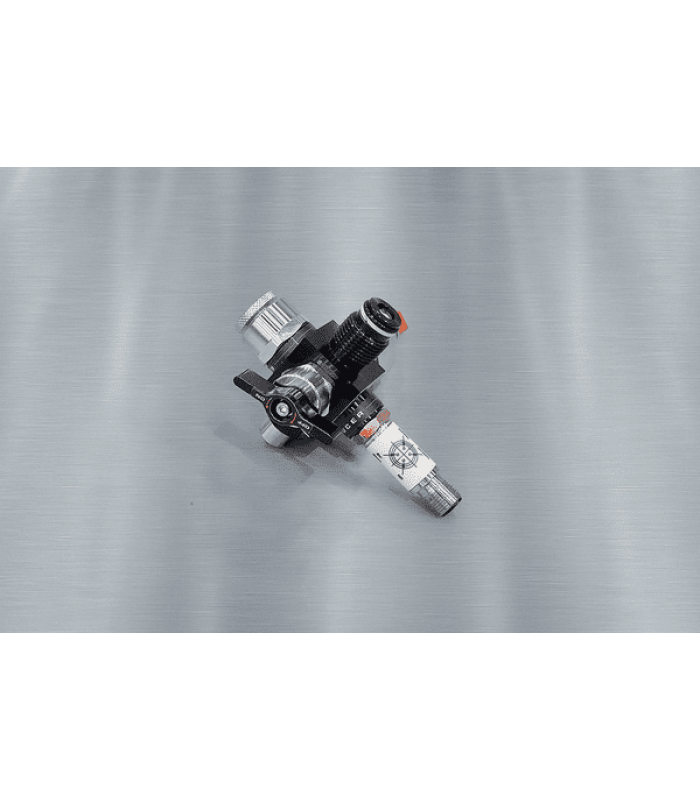

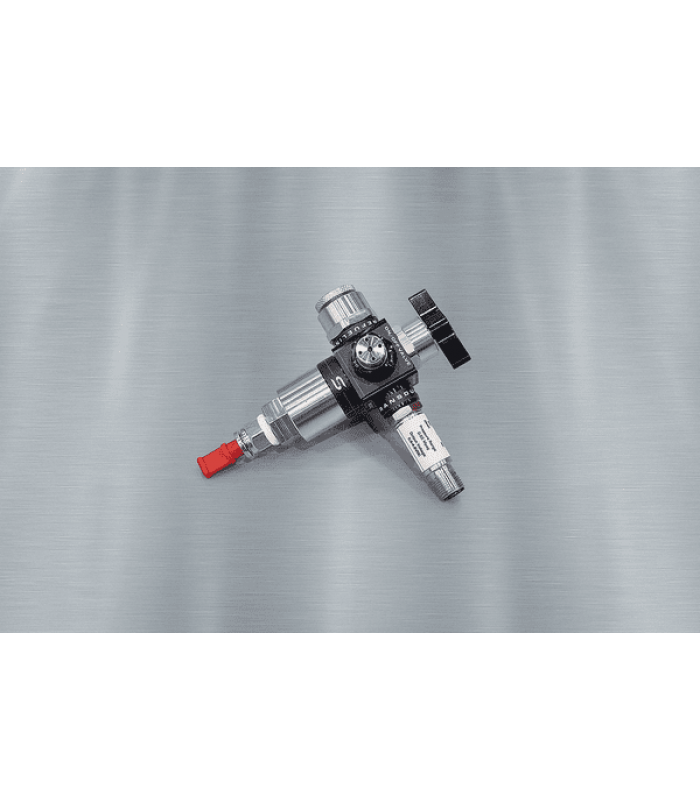

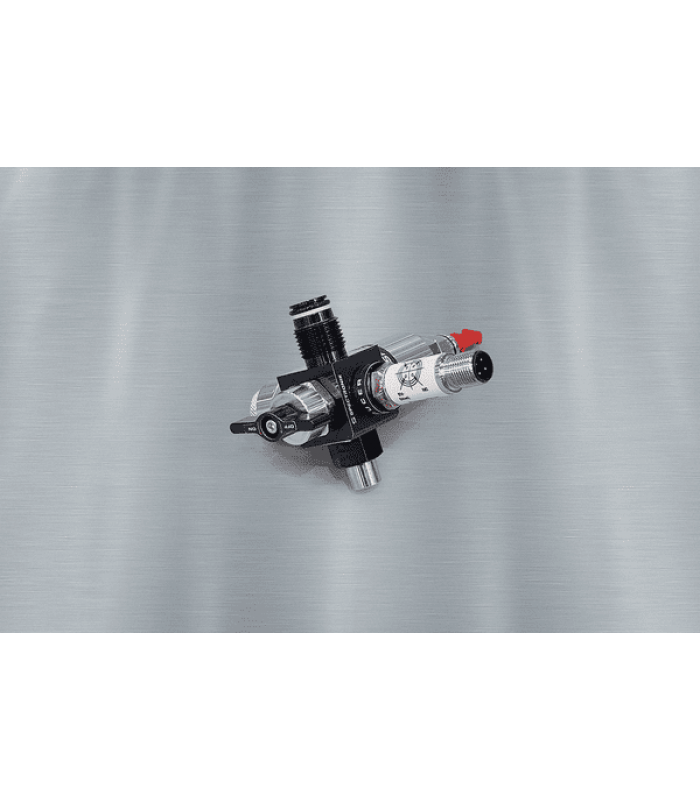

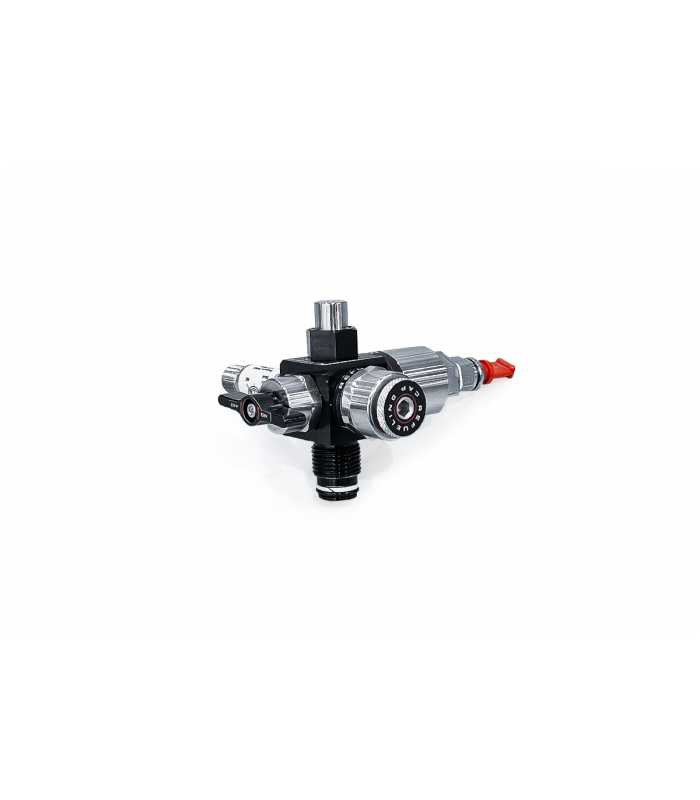

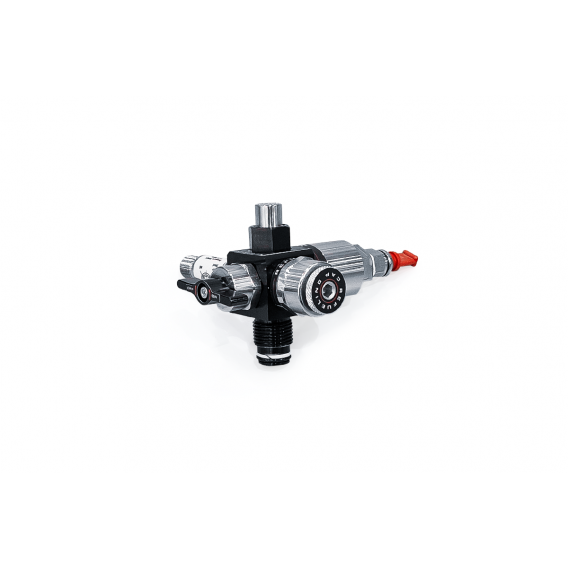

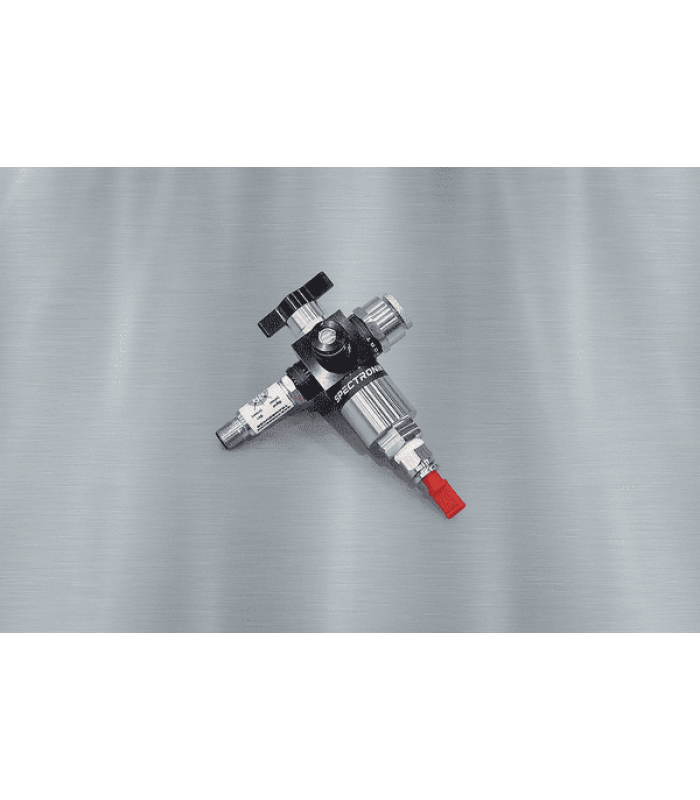

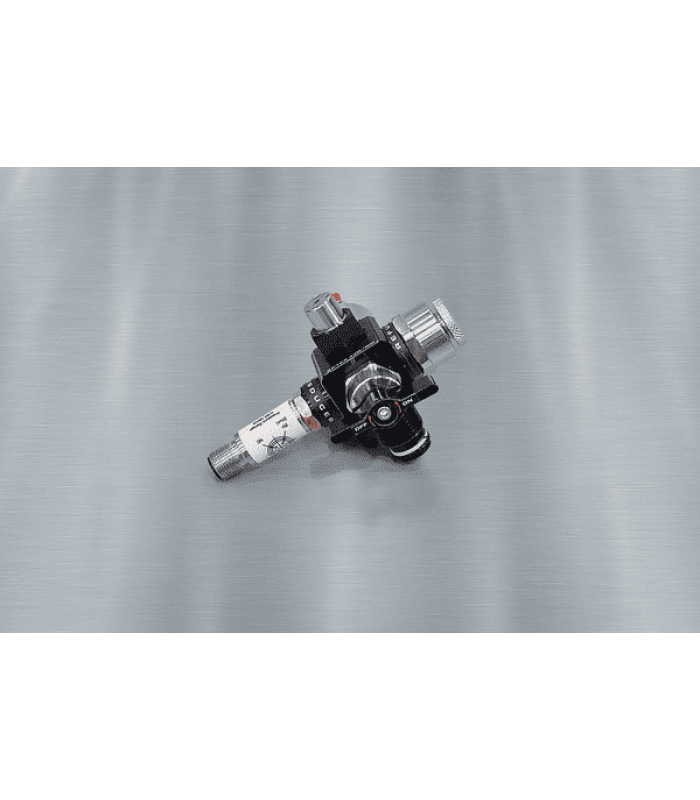

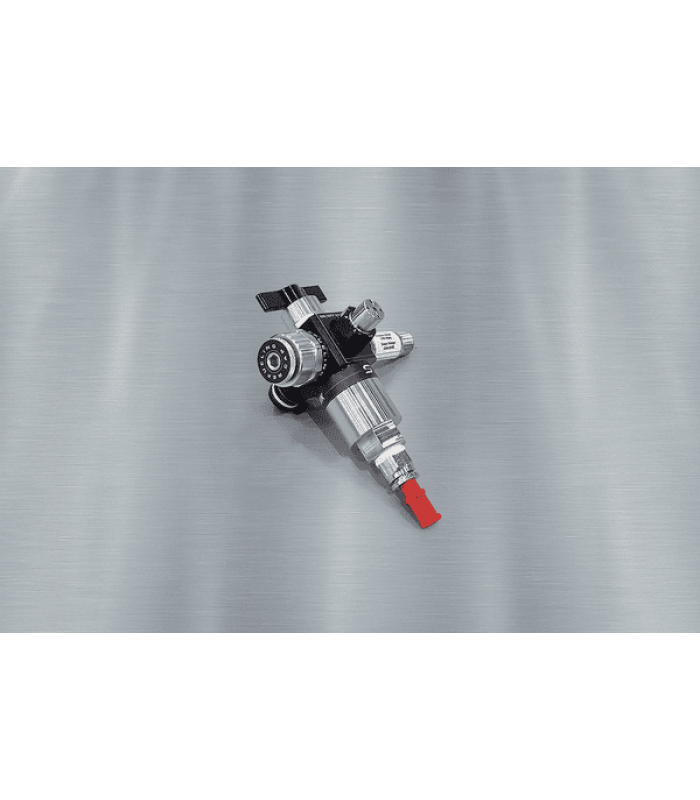

✔ Miniature gas pressure regulator
✔ Gas pressure transducer

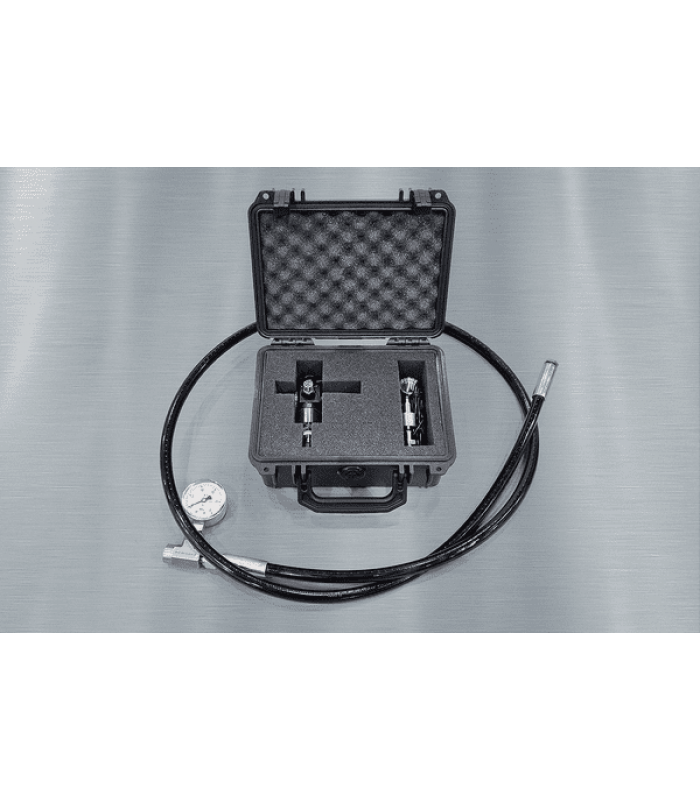

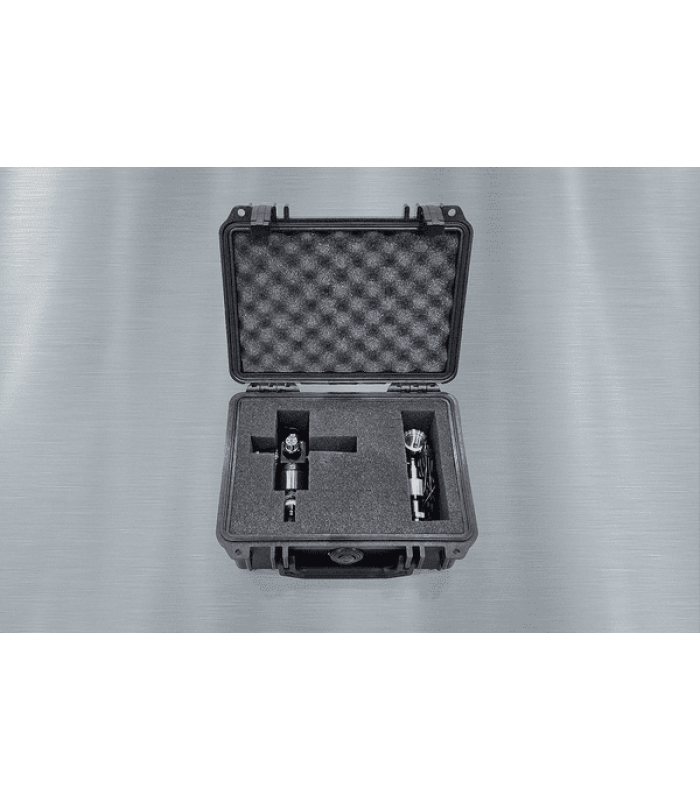

✔ Refueling kit
✔ Spare o-rings
Technical Specifications:
• Gas Media: Hydrogen, Nitrogen, Helium
• Rated Operating Pressure: 350bar
• Max Inlet Pressure: 438bar
• Min Inlet Pressure: 5bar
• Gas Outlet Pressure (@ rated flow): 0.4 – 2.0bar (factory set during order)
• Max Outlet Pressure (@ zero flow): Gas outlet pressure + 0.3bar
• Rated Flow Rate: 70 NLPM
• Operating Temperature: [-40,85]°C
• Inlet Filter: 10 micron
• Operating Lifetime: 50,000 cycles
• Outer Body Material: Al 2A14-T6
• Dimension: 91 x 72 x 71 mm
• Weight: 250g
• Connection to Gas Cylinder: M18 x 1.5
• Connection to Pressure Sensor: SAE7/16-20UNF 2B
• Connection to Refueling Hose: M12 x 1.25
• Gas Outlet Connector: NPT 1/4 to PU 8mm
Note: For detailed Specifications, download the full datasheet below.
