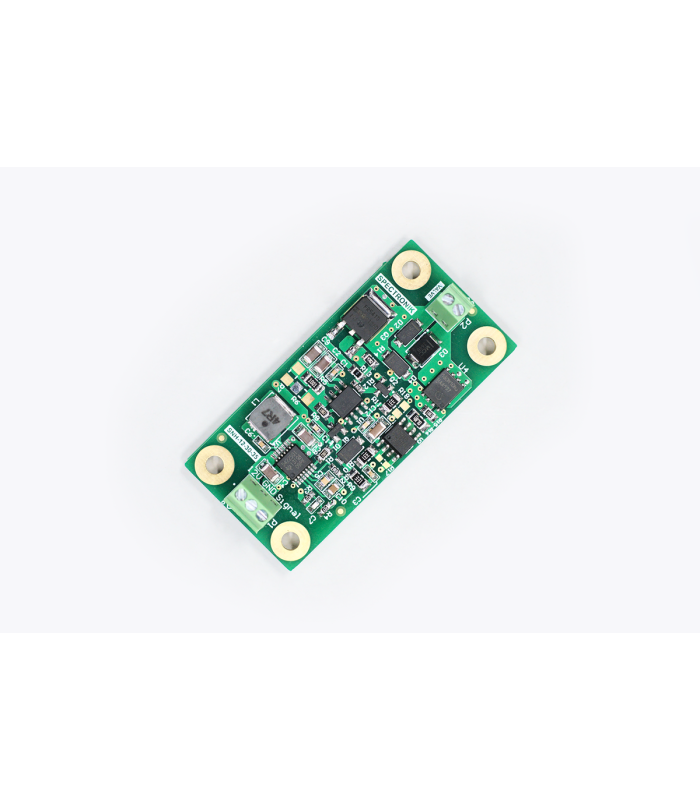

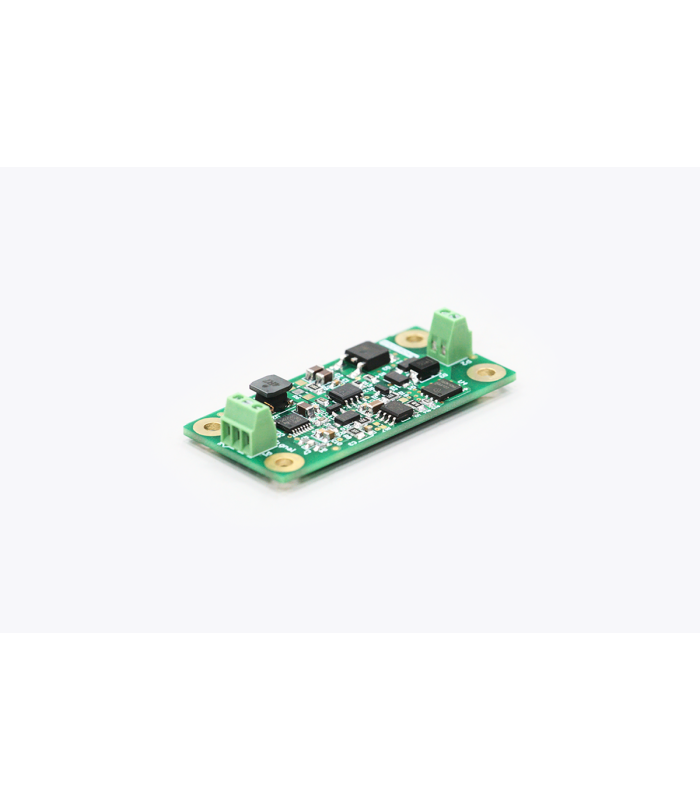

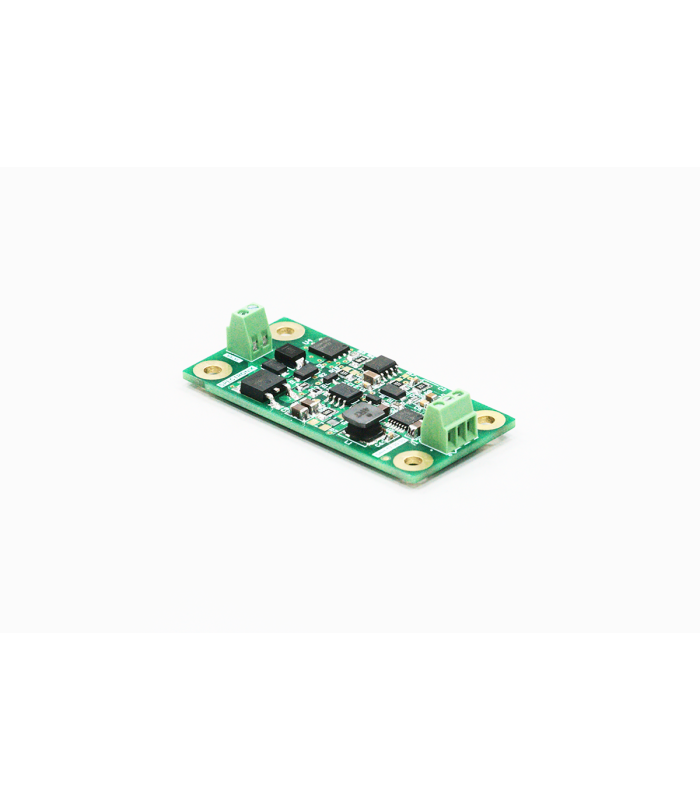

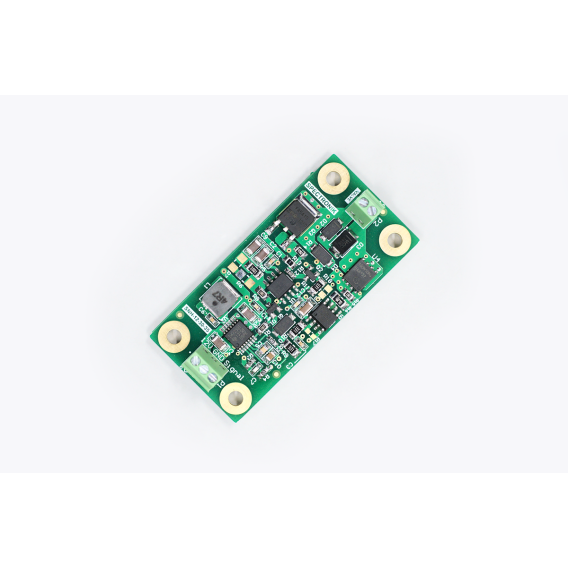

Spike-&-Hold Board
- Brand: Spectronik
- Product Code: SHB
- Availability: In Stock
SNH-12-30-35 is a plug-and-play circuit board that generates a spike-&-hold voltage typically needed in solenoid valves applications. Each SNH-12-30-35 board can support up to 4 of Spectronik’s HFV-3X-55 Highflow Miniature Valve Modules. Hold voltage is also factory configurable between 3.5-5VDC at the time of order
Short Description
SNH-12-30-35 is a plug-and-play circuit board that generates a spike-&-hold voltage typically needed in solenoid valves applications. Each SNH-12-30-35 board can support up to 4 of Spectronik’s HFV-3X-55 Highflow Miniature Valve Modules. Hold voltage is also factory configurable between 3.5-5VDC at the time of order
Mechanical Specifications:
• Dimension (max): (L) 57 x (H) 12 x (W) 27 mm
• Mass: 8.8 g
• Operating Ambient Temperature: -20℃ to 50℃
• Mounting Feature: 4 x ∅ 3.2 mm holes
Electrical Specifications:
• Supply Voltage and Current: 12 ±5% VDC, 4 A | 1A per Highflow Miniature Valve Module
• Signal (On/Off) Input: 3.3 VDC to 12 VDC
• Output Spike-&-Hold Voltages:
- Spike at Supply Voltage for 45 ms
- Hold at 3.5 ±5% VDC
- Factory-configurable 3.5 V to 5 V hold-voltage
Note : For detailed specifications, download the full datasheet below
